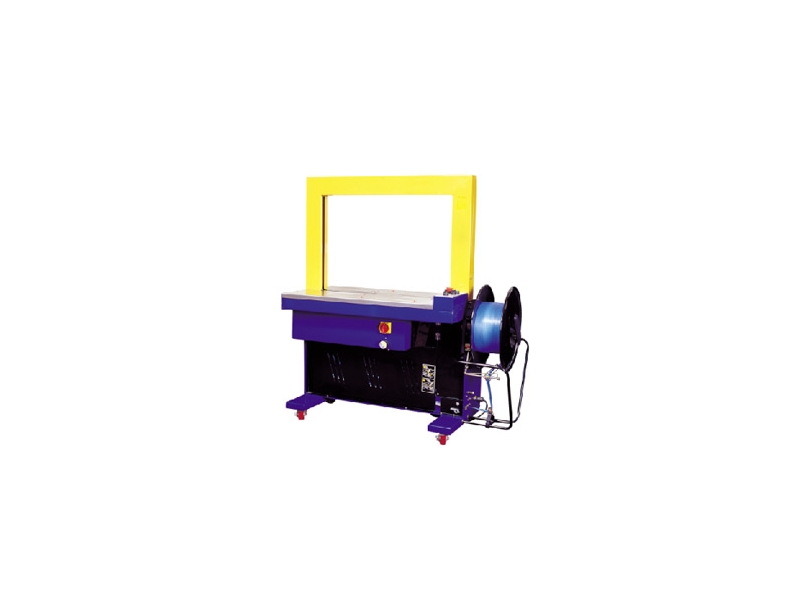

TYS-AN automatic standard station

Introduction:

Machine size: W1410 × D600 × H1540mm (arch W850) × H600)

Weight: Net weight: 215kg, shipping weight: 250kg

Applicable bandwidth: Polypropylene, width: 9, 10, 12, 16, 19mm

Power supply: 0.85KVA 1PH, 100V-240V, 50/60Hz

3PH, 380V, 50/60Hz

Bundling speed: 2.3sec/min. a cycle (arch W850) × H600)

Bow frame size: Width: 500-2850mm, Height: 250-1800mm

Binding force: 5-80kg

Table height: 3 "wheels 820mm/wheel free 740mm

3 "Wheel 685mm/4" Wheel 725mm/Wheelless 615mm
